Mark II Cyclone Steam Plant

by Harry Schoell

Back to PageOne



~ click photo to enlarge ~

 ~ click for movie ~
[Windows Media Player]

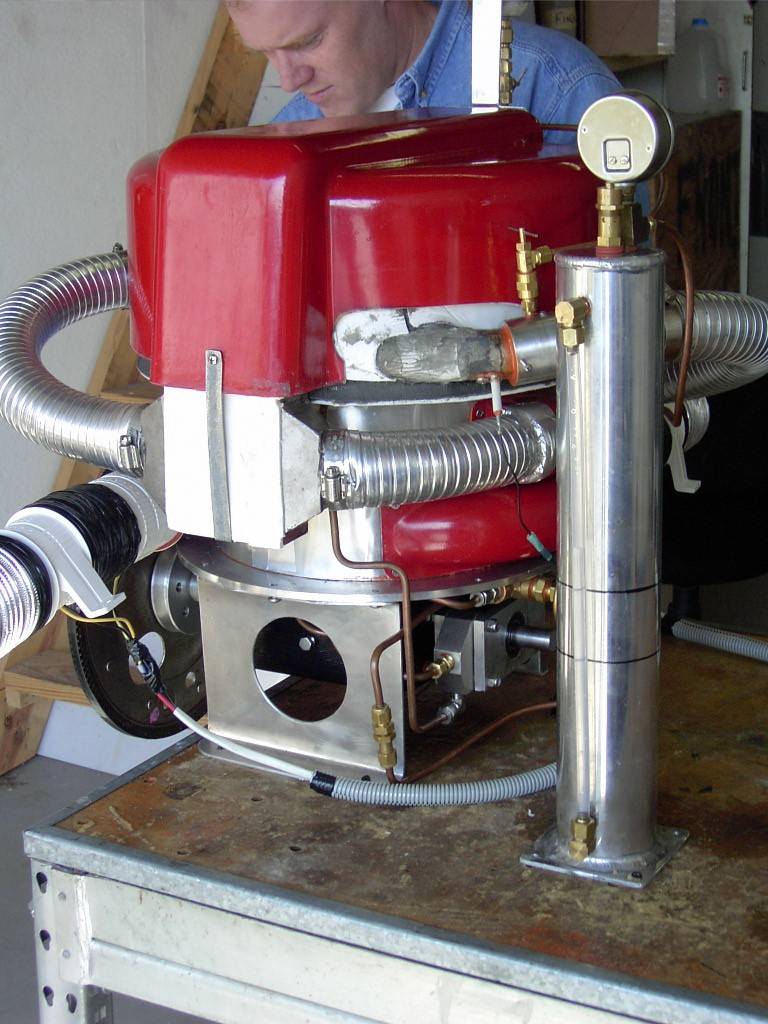

  This is the development of Harry Schoell, Cyclone Technologies LLP [Florida].  This unit is a two cylinder high pressure plant with a proposed output of 18 horsepower with a 9.4 cubic inch displacement, the complete unit is  just under 100 pounds all up.

The video shows it running without load.

 Rather impressive design with the furnace/boiler, engine, condenser and auxiliaries all built in including heat regenerative capabilities.
A larger 6 cylinder 100HP unit is under construction.


George Nutz
